Hypergraph geometry based on an input file. More...

#include <file.hxx>

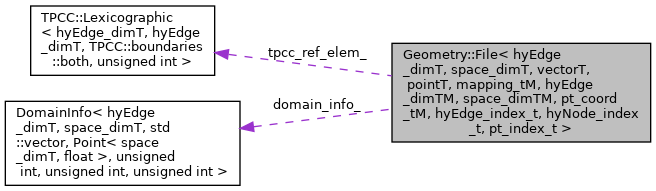

Collaboration diagram for Geometry::File< hyEdge_dimT, space_dimT, vectorT, pointT, mapping_tM, hyEdge_dimTM, space_dimTM, pt_coord_tM, hyEdge_index_t, hyNode_index_t, pt_index_t >:

[legend]

Classes
class	hyEdge
	Definition of the geometry of a hypergraph's edges. More...

Public Types
typedef hyEdge	value_type
	Defines the return value of the class. More...

typedef Topology::File< hyEdge_dimT, space_dimT, vectorT, pointT, hyEdge_index_t, hyNode_index_t, pt_index_t >	constructor_value_type
	Define the value type of input argument for standard constructor. More...

Public Member Functions
	File (const constructor_value_type &topology)
	Construct a hypergraph which is read from a file. More...

value_type	operator[] (const hyEdge_index_t index) const
	Get geometrical hyperedge of given index. More...

value_type	get_hyEdge (const hyEdge_index_t index) const
	Get geometrical hyperedge of given index. More...

unsigned int	get_refinement () const
	Return the refinement level (equal to number of subintervals). More...

void	set_refinement (unsigned int level)
	Set the refinement level (equal to number of subintervals). More...

Static Public Member Functions
static constexpr unsigned int	hyEdge_dim ()
	Returns the template parameter representing the dimension of a hyperedge. More...

static constexpr unsigned int	space_dim ()
	Returns the template parameter representing the dimension of the space. More...

Private Types
using	pt_coord_t = typename pointT::value_type
	The point type is the floating point type of `pointT`. More...

using	mapping_t = mapping_tM< hyEdge_dimTM, space_dimTM, pt_coord_tM >
	The mapping type is `mapping_tt` with given template parameters. More...

Private Attributes
const DomainInfo< hyEdge_dimT, space_dimT, vectorT, pointT, hyEdge_index_t, hyNode_index_t, pt_index_t > &	domain_info_
	Domain Info containing all the information of the hypergraph (cf. ReadDomain.hxx). More...

unsigned int	n_subintervals_
	Refinment level corresponds to number of subintervals per dimension. More...

Wrapper::tpcc_t< hyEdge_dimT, hyEdge_dimT, TPCC::boundaries::both, hyEdge_index_t >	tpcc_ref_elem_
	Tensor product chain complex for refined elements. More...

unsigned int	n_loc_ref_elem
	Number of refined elements per element. More...

Detailed Description

template<unsigned int hyEdge_dimT, unsigned int space_dimT, template< typename... > typename vectorT = std::vector, typename pointT = Point<space_dimT, float>, template< unsigned int, unsigned int, typename > typename mapping_tM = Mapping::Linear, unsigned int hyEdge_dimTM = hyEdge_dimT, unsigned int space_dimTM = space_dimT, typename pt_coord_tM = typename pointT::value_type, typename hyEdge_index_t = unsigned int, typename hyNode_index_t = hyEdge_index_t, typename pt_index_t = hyNode_index_t>
class Geometry::File< hyEdge_dimT, space_dimT, vectorT, pointT, mapping_tM, hyEdge_dimTM, space_dimTM, pt_coord_tM, hyEdge_index_t, hyNode_index_t, pt_index_t >

Hypergraph geometry based on an input file.

The geometry class File is a set of hyperedges. Each of these tensorial hyperedges is represented by its vertices (given within the file). For consistency, it is assumed that the vertices are given in lexicographical order. Also the hypernodes are assumed to be given in lexicographical order to ensure that geometry and topology of all hyperedges fit.

Template Parameters

hyEdge_dimT	Dimension of a hyperedge, i.e., 1 is for PDEs defined on graphs, 2 is for PDEs defined on surfaces, and 3 is for PDEs defined on volumes.
space_dimT	The dimension of the space, the object is located in. This number should be larger than or equal to hyEdge_dimT.
vectorT	The typename of the large vector type. Defaults to std::vector.
pointT	The typename of a Point class. Defaults to `Point<space_dimT, float>`.
mapping_tM	The mapping which should depened on the aforementioned three template arguments. Default is linear mapping.
hyEdge_dimTM	Dimension of a hyperedge, i.e., 1 is for PDEs defined on graphs, 2 is for PDEs defined on surfaces, and 3 is for PDEs defined on volumes. Template parameter for the mapping which defaults to hyEdge_dimT.
space_dimTM	The dimension of the space, the object is located in. This number should be larger than or equal to hyEdge_dimT. Template parameter for the mapping which defaults to space_dimT.
pt_coord_tM	The floating point type in which points/vertices are represented. Default is the floating point of the point class. Template parameter for the mapping which defaults to pt_coord_t.
hyEdge_index_t	The index type for hyperedges. Default is `unsigned` `int`.
hyNode_index_t	The index type for hypernodes. Default is `hyNode_index_t`.
pt_index_t	The index type of points. Default is `hyNode_index_t`.

Authors: Guido Kanschat, Heidelberg University, 2019–2020.; Andreas Rupp, Heidelberg University, 2019–2020.

Member Typedef Documentation

◆ constructor_value_type

template<unsigned int hyEdge_dimT, unsigned int space_dimT, template< typename... > typename vectorT = std::vector, typename pointT = Point<space_dimT, float>, template< unsigned int, unsigned int, typename > typename mapping_tM = Mapping::Linear, unsigned int hyEdge_dimTM = hyEdge_dimT, unsigned int space_dimTM = space_dimT, typename pt_coord_tM = typename pointT::value_type, typename hyEdge_index_t = unsigned int, typename hyNode_index_t = hyEdge_index_t, typename pt_index_t = hyNode_index_t>

typedef Topology:: File<hyEdge_dimT, space_dimT, vectorT, pointT, hyEdge_index_t, hyNode_index_t, pt_index_t> Geometry::File< hyEdge_dimT, space_dimT, vectorT, pointT, mapping_tM, hyEdge_dimTM, space_dimTM, pt_coord_tM, hyEdge_index_t, hyNode_index_t, pt_index_t >::constructor_value_type

Define the value type of input argument for standard constructor.

◆ mapping_t

template<unsigned int hyEdge_dimT, unsigned int space_dimT, template< typename... > typename vectorT = std::vector, typename pointT = Point<space_dimT, float>, template< unsigned int, unsigned int, typename > typename mapping_tM = Mapping::Linear, unsigned int hyEdge_dimTM = hyEdge_dimT, unsigned int space_dimTM = space_dimT, typename pt_coord_tM = typename pointT::value_type, typename hyEdge_index_t = unsigned int, typename hyNode_index_t = hyEdge_index_t, typename pt_index_t = hyNode_index_t>

using Geometry::File< hyEdge_dimT, space_dimT, vectorT, pointT, mapping_tM, hyEdge_dimTM, space_dimTM, pt_coord_tM, hyEdge_index_t, hyNode_index_t, pt_index_t >::mapping_t = mapping_tM<hyEdge_dimTM, space_dimTM, pt_coord_tM>

private

The mapping type is mapping_tt with given template parameters.

◆ pt_coord_t

template<unsigned int hyEdge_dimT, unsigned int space_dimT, template< typename... > typename vectorT = std::vector, typename pointT = Point<space_dimT, float>, template< unsigned int, unsigned int, typename > typename mapping_tM = Mapping::Linear, unsigned int hyEdge_dimTM = hyEdge_dimT, unsigned int space_dimTM = space_dimT, typename pt_coord_tM = typename pointT::value_type, typename hyEdge_index_t = unsigned int, typename hyNode_index_t = hyEdge_index_t, typename pt_index_t = hyNode_index_t>

using Geometry::File< hyEdge_dimT, space_dimT, vectorT, pointT, mapping_tM, hyEdge_dimTM, space_dimTM, pt_coord_tM, hyEdge_index_t, hyNode_index_t, pt_index_t >::pt_coord_t = typename pointT::value_type

private

The point type is the floating point type of pointT.

◆ value_type

template<unsigned int hyEdge_dimT, unsigned int space_dimT, template< typename... > typename vectorT = std::vector, typename pointT = Point<space_dimT, float>, template< unsigned int, unsigned int, typename > typename mapping_tM = Mapping::Linear, unsigned int hyEdge_dimTM = hyEdge_dimT, unsigned int space_dimTM = space_dimT, typename pt_coord_tM = typename pointT::value_type, typename hyEdge_index_t = unsigned int, typename hyNode_index_t = hyEdge_index_t, typename pt_index_t = hyNode_index_t>

typedef hyEdge Geometry::File< hyEdge_dimT, space_dimT, vectorT, pointT, mapping_tM, hyEdge_dimTM, space_dimTM, pt_coord_tM, hyEdge_index_t, hyNode_index_t, pt_index_t >::value_type

Defines the return value of the class.

The class Geometry::File defines the geometry of the hypergraph. It "contains" the different hyperedges (that actually are constructed everytime access is needed from e.g. the solver class). Thus, its main purpose is to provide a structure that administrates the hyperedges that are the return value of this structure.

Constructor & Destructor Documentation

◆ File()

template<unsigned int hyEdge_dimT, unsigned int space_dimT, template< typename... > typename vectorT = std::vector, typename pointT = Point<space_dimT, float>, template< unsigned int, unsigned int, typename > typename mapping_tM = Mapping::Linear, unsigned int hyEdge_dimTM = hyEdge_dimT, unsigned int space_dimTM = space_dimT, typename pt_coord_tM = typename pointT::value_type, typename hyEdge_index_t = unsigned int, typename hyNode_index_t = hyEdge_index_t, typename pt_index_t = hyNode_index_t>

Geometry::File< hyEdge_dimT, space_dimT, vectorT, pointT, mapping_tM, hyEdge_dimTM, space_dimTM, pt_coord_tM, hyEdge_index_t, hyNode_index_t, pt_index_t >::File ( const constructor_value_type & topology )

inline

Construct a hypergraph which is read from a file.

Constructs a hypergraph from a Topology::File containing the elementens per spatial dimension which is given as by its topology.

Parameters

topology The topology of the hypergraph that has the geometry of the unit cube.

Member Function Documentation

◆ get_hyEdge()

template<unsigned int hyEdge_dimT, unsigned int space_dimT, template< typename... > typename vectorT = std::vector, typename pointT = Point<space_dimT, float>, template< unsigned int, unsigned int, typename > typename mapping_tM = Mapping::Linear, unsigned int hyEdge_dimTM = hyEdge_dimT, unsigned int space_dimTM = space_dimT, typename pt_coord_tM = typename pointT::value_type, typename hyEdge_index_t = unsigned int, typename hyNode_index_t = hyEdge_index_t, typename pt_index_t = hyNode_index_t>

value_type Geometry::File< hyEdge_dimT, space_dimT, vectorT, pointT, mapping_tM, hyEdge_dimTM, space_dimTM, pt_coord_tM, hyEdge_index_t, hyNode_index_t, pt_index_t >::get_hyEdge ( const hyEdge_index_t index ) const

inline

Get geometrical hyperedge of given index.

This function returns the hyperedge of the given index, i.e., it returns the geometrical hyperedge (not the topological information). The geometrical informatiom comprises the indices of adjacent vertices (i.e. points) and information about their respective positions. It is equivalent to operator[].

Parameters

index The index of the hyperedge to be returned.

Return values

hyperedge Geometrical information on the hyperedge (cf. value_type).

Here is the call graph for this function:

◆ get_refinement()

template<unsigned int hyEdge_dimT, unsigned int space_dimT, template< typename... > typename vectorT = std::vector, typename pointT = Point<space_dimT, float>, template< unsigned int, unsigned int, typename > typename mapping_tM = Mapping::Linear, unsigned int hyEdge_dimTM = hyEdge_dimT, unsigned int space_dimTM = space_dimT, typename pt_coord_tM = typename pointT::value_type, typename hyEdge_index_t = unsigned int, typename hyNode_index_t = hyEdge_index_t, typename pt_index_t = hyNode_index_t>

unsigned int Geometry::File< hyEdge_dimT, space_dimT, vectorT, pointT, mapping_tM, hyEdge_dimTM, space_dimTM, pt_coord_tM, hyEdge_index_t, hyNode_index_t, pt_index_t >::get_refinement ( ) const

inline

Return the refinement level (equal to number of subintervals).

◆ hyEdge_dim()

template<unsigned int hyEdge_dimT, unsigned int space_dimT, template< typename... > typename vectorT = std::vector, typename pointT = Point<space_dimT, float>, template< unsigned int, unsigned int, typename > typename mapping_tM = Mapping::Linear, unsigned int hyEdge_dimTM = hyEdge_dimT, unsigned int space_dimTM = space_dimT, typename pt_coord_tM = typename pointT::value_type, typename hyEdge_index_t = unsigned int, typename hyNode_index_t = hyEdge_index_t, typename pt_index_t = hyNode_index_t>

static constexpr unsigned int Geometry::File< hyEdge_dimT, space_dimT, vectorT, pointT, mapping_tM, hyEdge_dimTM, space_dimTM, pt_coord_tM, hyEdge_index_t, hyNode_index_t, pt_index_t >::hyEdge_dim ( )

inlinestaticconstexpr

Returns the template parameter representing the dimension of a hyperedge.

Return values

hyEdge_dimT The dimension of a hyperedge.

◆ operator[]()

template<unsigned int hyEdge_dimT, unsigned int space_dimT, template< typename... > typename vectorT = std::vector, typename pointT = Point<space_dimT, float>, template< unsigned int, unsigned int, typename > typename mapping_tM = Mapping::Linear, unsigned int hyEdge_dimTM = hyEdge_dimT, unsigned int space_dimTM = space_dimT, typename pt_coord_tM = typename pointT::value_type, typename hyEdge_index_t = unsigned int, typename hyNode_index_t = hyEdge_index_t, typename pt_index_t = hyNode_index_t>

value_type Geometry::File< hyEdge_dimT, space_dimT, vectorT, pointT, mapping_tM, hyEdge_dimTM, space_dimTM, pt_coord_tM, hyEdge_index_t, hyNode_index_t, pt_index_t >::operator[] ( const hyEdge_index_t index ) const

inline

Get geometrical hyperedge of given index.

This function returns the hyperedge of the given index, i.e., it returns the geometrical hyperedge (not the topological information). The geometrical informatiom comprises the indices of adjacent vertices (i.e. points) and information about their respective positions. It is equivalent to get_hyEdge.

Parameters

index The index of the hyperedge to be returned.

Return values

hyperedge Geometrical information on the hyperedge (cf. value_type).

Here is the call graph for this function:

◆ set_refinement()

template<unsigned int hyEdge_dimT, unsigned int space_dimT, template< typename... > typename vectorT = std::vector, typename pointT = Point<space_dimT, float>, template< unsigned int, unsigned int, typename > typename mapping_tM = Mapping::Linear, unsigned int hyEdge_dimTM = hyEdge_dimT, unsigned int space_dimTM = space_dimT, typename pt_coord_tM = typename pointT::value_type, typename hyEdge_index_t = unsigned int, typename hyNode_index_t = hyEdge_index_t, typename pt_index_t = hyNode_index_t>

void Geometry::File< hyEdge_dimT, space_dimT, vectorT, pointT, mapping_tM, hyEdge_dimTM, space_dimTM, pt_coord_tM, hyEdge_index_t, hyNode_index_t, pt_index_t >::set_refinement ( unsigned int level )

inline

Set the refinement level (equal to number of subintervals).

Here is the call graph for this function:

◆ space_dim()

template<unsigned int hyEdge_dimT, unsigned int space_dimT, template< typename... > typename vectorT = std::vector, typename pointT = Point<space_dimT, float>, template< unsigned int, unsigned int, typename > typename mapping_tM = Mapping::Linear, unsigned int hyEdge_dimTM = hyEdge_dimT, unsigned int space_dimTM = space_dimT, typename pt_coord_tM = typename pointT::value_type, typename hyEdge_index_t = unsigned int, typename hyNode_index_t = hyEdge_index_t, typename pt_index_t = hyNode_index_t>

static constexpr unsigned int Geometry::File< hyEdge_dimT, space_dimT, vectorT, pointT, mapping_tM, hyEdge_dimTM, space_dimTM, pt_coord_tM, hyEdge_index_t, hyNode_index_t, pt_index_t >::space_dim ( )

inlinestaticconstexpr

Returns the template parameter representing the dimension of the space.

Return values

space_dimT The dimension of the space.

Member Data Documentation

◆ domain_info_

template<unsigned int hyEdge_dimT, unsigned int space_dimT, template< typename... > typename vectorT = std::vector, typename pointT = Point<space_dimT, float>, template< unsigned int, unsigned int, typename > typename mapping_tM = Mapping::Linear, unsigned int hyEdge_dimTM = hyEdge_dimT, unsigned int space_dimTM = space_dimT, typename pt_coord_tM = typename pointT::value_type, typename hyEdge_index_t = unsigned int, typename hyNode_index_t = hyEdge_index_t, typename pt_index_t = hyNode_index_t>

const DomainInfo<hyEdge_dimT, space_dimT, vectorT, pointT, hyEdge_index_t, hyNode_index_t, pt_index_t>& Geometry::File< hyEdge_dimT, space_dimT, vectorT, pointT, mapping_tM, hyEdge_dimTM, space_dimTM, pt_coord_tM, hyEdge_index_t, hyNode_index_t, pt_index_t >::domain_info_

private

Domain Info containing all the information of the hypergraph (cf. ReadDomain.hxx).

◆ n_loc_ref_elem

template<unsigned int hyEdge_dimT, unsigned int space_dimT, template< typename... > typename vectorT = std::vector, typename pointT = Point<space_dimT, float>, template< unsigned int, unsigned int, typename > typename mapping_tM = Mapping::Linear, unsigned int hyEdge_dimTM = hyEdge_dimT, unsigned int space_dimTM = space_dimT, typename pt_coord_tM = typename pointT::value_type, typename hyEdge_index_t = unsigned int, typename hyNode_index_t = hyEdge_index_t, typename pt_index_t = hyNode_index_t>

unsigned int Geometry::File< hyEdge_dimT, space_dimT, vectorT, pointT, mapping_tM, hyEdge_dimTM, space_dimTM, pt_coord_tM, hyEdge_index_t, hyNode_index_t, pt_index_t >::n_loc_ref_elem

private

Number of refined elements per element.

◆ n_subintervals_

template<unsigned int hyEdge_dimT, unsigned int space_dimT, template< typename... > typename vectorT = std::vector, typename pointT = Point<space_dimT, float>, template< unsigned int, unsigned int, typename > typename mapping_tM = Mapping::Linear, unsigned int hyEdge_dimTM = hyEdge_dimT, unsigned int space_dimTM = space_dimT, typename pt_coord_tM = typename pointT::value_type, typename hyEdge_index_t = unsigned int, typename hyNode_index_t = hyEdge_index_t, typename pt_index_t = hyNode_index_t>

unsigned int Geometry::File< hyEdge_dimT, space_dimT, vectorT, pointT, mapping_tM, hyEdge_dimTM, space_dimTM, pt_coord_tM, hyEdge_index_t, hyNode_index_t, pt_index_t >::n_subintervals_

private

Refinment level corresponds to number of subintervals per dimension.

◆ tpcc_ref_elem_

template<unsigned int hyEdge_dimT, unsigned int space_dimT, template< typename... > typename vectorT = std::vector, typename pointT = Point<space_dimT, float>, template< unsigned int, unsigned int, typename > typename mapping_tM = Mapping::Linear, unsigned int hyEdge_dimTM = hyEdge_dimT, unsigned int space_dimTM = space_dimT, typename pt_coord_tM = typename pointT::value_type, typename hyEdge_index_t = unsigned int, typename hyNode_index_t = hyEdge_index_t, typename pt_index_t = hyNode_index_t>

Wrapper::tpcc_t<hyEdge_dimT, hyEdge_dimT, TPCC::boundaries::both, hyEdge_index_t> Geometry::File< hyEdge_dimT, space_dimT, vectorT, pointT, mapping_tM, hyEdge_dimTM, space_dimTM, pt_coord_tM, hyEdge_index_t, hyNode_index_t, pt_index_t >::tpcc_ref_elem_

private

Tensor product chain complex for refined elements.

The documentation for this class was generated from the following file:

/home/runner/work/HyperHDG/HyperHDG/include/HyperHDG/geometry/file.hxx
