Define the geometry of a unit cube that is subdivided into several orthotopes. More...

#include <unit_cube.hxx>

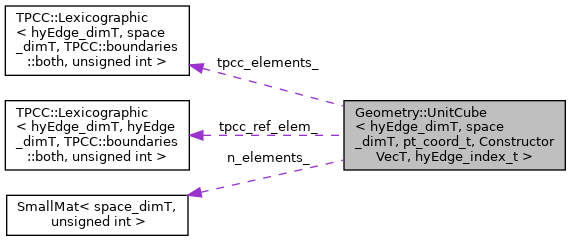

Collaboration diagram for Geometry::UnitCube< hyEdge_dimT, space_dimT, pt_coord_t, ConstructorVecT, hyEdge_index_t >:

[legend]

Classes
class	hyEdge
	Definition of the geometry of a single hyperedge. More...

Public Types
typedef hyEdge	value_type
	Defines the return value of the class. More...

typedef ConstructorVecT	constructor_value_type
	Defines the value type of input argument for standard constructor. More...

Public Member Functions
	UnitCube (const constructor_value_type &n_elements)
	Construct a cubic that describes a unit cube hypergraph. More...

	UnitCube (const Topology::Cubic< hyEdge_dimT, space_dimT > &other)
	Construct a unit cube from its topological information. More...

const value_type	operator[] (const hyEdge_index_t index) const
	Get geometrical hyperedge of given index. More...

unsigned int	get_refinement () const
	Return the refinement level (equal to number of subintervals). More...

void	set_refinement (unsigned int level)
	Set the refinement level (equal to number of subintervals). More...

Static Public Member Functions
static constexpr unsigned int	hyEdge_dim ()
	Return the template parameter representing the dimension of a hyperedge. More...

static constexpr unsigned int	space_dim ()
	Return the template parameter representing the dimension of the space. More...

Private Attributes
const SmallVec< space_dimT, unsigned int >	n_elements_
	Number of elements per spatial dimension. More...

const Wrapper::tpcc_t< hyEdge_dimT, space_dimT, TPCC::boundaries::both, hyEdge_index_t >	tpcc_elements_
	Tensor product chain complex for elements. More...

unsigned int	n_subintervals_
	Refinment level corresponds to number of subintervals per dimension. More...

Wrapper::tpcc_t< hyEdge_dimT, hyEdge_dimT, TPCC::boundaries::both, hyEdge_index_t >	tpcc_ref_elem_
	Tensor product chain complex for refined elements. More...

unsigned int	n_loc_ref_elem
	Number of refined elements per element. More...

Detailed Description

template<unsigned int hyEdge_dimT, unsigned int space_dimT, typename pt_coord_t = double, typename ConstructorVecT = SmallVec<space_dimT, unsigned int>, typename hyEdge_index_t = unsigned int>
class Geometry::UnitCube< hyEdge_dimT, space_dimT, pt_coord_t, ConstructorVecT, hyEdge_index_t >

Define the geometry of a unit cube that is subdivided into several orthotopes.

This class defines the geometry of a unit cube which is subdivided into several orthotopes. The number of orthotopes in each spatial dimension is defined by the vector that serves as the argument of the constructor.

Template Parameters

hyEdge_dimT	Dimension of a hyperedge, i.e., 1 is for PDEs defined on graphs, 2 is for PDEs defined on surfaces, and 3 is for PDEs defined on volumes, ....
space_dimT	The dimension of the space, the object is located in. This number should be larger than or equal to hyEdge_dimT.
pt_coord_t	The floating point type in which the coordinates of vertices are given. Defaults to double.
ConstructorVecT	The vector/array type of the constructor. Defaults to SmallVec<space_dimT, unsigned int>.
hyEdge_index_t	The integer type in which the indices of hyperedges are represented. Defaults to unsigne int.

Authors: Guido Kanschat, Heidelberg University, 2019–2020.; Andreas Rupp, Heidelberg University, 2019–2020.

Member Typedef Documentation

◆ constructor_value_type

template<unsigned int hyEdge_dimT, unsigned int space_dimT, typename pt_coord_t = double, typename ConstructorVecT = SmallVec<space_dimT, unsigned int>, typename hyEdge_index_t = unsigned int>

typedef ConstructorVecT Geometry::UnitCube< hyEdge_dimT, space_dimT, pt_coord_t, ConstructorVecT, hyEdge_index_t >::constructor_value_type

Defines the value type of input argument for standard constructor.

To receive very general global loops, constructors need to account for the fact that the specific topology / geometry of a hypergraph influences the way in which the hypergraph needs to be constructed. The typedef implements the aspect, that a cubic hypergraph geometry which is a unit cube is by default constructed by a vector / array that contains the numbers of elements in the different dimensions.

◆ value_type

template<unsigned int hyEdge_dimT, unsigned int space_dimT, typename pt_coord_t = double, typename ConstructorVecT = SmallVec<space_dimT, unsigned int>, typename hyEdge_index_t = unsigned int>

typedef hyEdge Geometry::UnitCube< hyEdge_dimT, space_dimT, pt_coord_t, ConstructorVecT, hyEdge_index_t >::value_type

Defines the return value of the class.

The class UnitCube defines the geometry of the hypergraph. It contains the different hyperedges (that actually are constructed everytime access is needed from e.g. the solver class). Thus, its main purpose is to provide a structure that administrates the hyperedges that are the return value of this structure.

Constructor & Destructor Documentation

◆ UnitCube() [1/2]

template<unsigned int hyEdge_dimT, unsigned int space_dimT, typename pt_coord_t = double, typename ConstructorVecT = SmallVec<space_dimT, unsigned int>, typename hyEdge_index_t = unsigned int>

Geometry::UnitCube< hyEdge_dimT, space_dimT, pt_coord_t, ConstructorVecT, hyEdge_index_t >::UnitCube ( const constructor_value_type & n_elements )

inline

Construct a cubic that describes a unit cube hypergraph.

Constructs a hypergraph from a constructor_value_type containing the elementens per spatial dimension.

Parameters

n_elements The number of elements per spatial dimension.

◆ UnitCube() [2/2]

template<unsigned int hyEdge_dimT, unsigned int space_dimT, typename pt_coord_t = double, typename ConstructorVecT = SmallVec<space_dimT, unsigned int>, typename hyEdge_index_t = unsigned int>

Geometry::UnitCube< hyEdge_dimT, space_dimT, pt_coord_t, ConstructorVecT, hyEdge_index_t >::UnitCube ( const Topology::Cubic< hyEdge_dimT, space_dimT > & other )

inline

Construct a unit cube from its topological information.

Constructs a hypergraph from a Topology::Cubic containing the elementens per spatial dimension.

Parameters

other The topology of the hypergraph that has the geometry of the unit cube.

Member Function Documentation

◆ get_refinement()

template<unsigned int hyEdge_dimT, unsigned int space_dimT, typename pt_coord_t = double, typename ConstructorVecT = SmallVec<space_dimT, unsigned int>, typename hyEdge_index_t = unsigned int>

unsigned int Geometry::UnitCube< hyEdge_dimT, space_dimT, pt_coord_t, ConstructorVecT, hyEdge_index_t >::get_refinement ( ) const

inline

Return the refinement level (equal to number of subintervals).

◆ hyEdge_dim()

template<unsigned int hyEdge_dimT, unsigned int space_dimT, typename pt_coord_t = double, typename ConstructorVecT = SmallVec<space_dimT, unsigned int>, typename hyEdge_index_t = unsigned int>

static constexpr unsigned int Geometry::UnitCube< hyEdge_dimT, space_dimT, pt_coord_t, ConstructorVecT, hyEdge_index_t >::hyEdge_dim ( )

inlinestaticconstexpr

Return the template parameter representing the dimension of a hyperedge.

Return values

hyEdge_dimT The dimension of a hyperedge.

◆ operator[]()

template<unsigned int hyEdge_dimT, unsigned int space_dimT, typename pt_coord_t = double, typename ConstructorVecT = SmallVec<space_dimT, unsigned int>, typename hyEdge_index_t = unsigned int>

const value_type Geometry::UnitCube< hyEdge_dimT, space_dimT, pt_coord_t, ConstructorVecT, hyEdge_index_t >::operator[] ( const hyEdge_index_t index ) const

inline

Get geometrical hyperedge of given index.

This function returns the hyperedge of the given index, i.e., it returns the geometrical hyperedge (not the topological information). The geometrical informatiom comprises the indices of adjacent vertices (i.e. points) and information about their respective positions.

Parameters

index The index of the hyperedge to be returned.

Return values

hyperedge Geometrical information on the hyperedge (cf. value_type).

◆ set_refinement()

template<unsigned int hyEdge_dimT, unsigned int space_dimT, typename pt_coord_t = double, typename ConstructorVecT = SmallVec<space_dimT, unsigned int>, typename hyEdge_index_t = unsigned int>

void Geometry::UnitCube< hyEdge_dimT, space_dimT, pt_coord_t, ConstructorVecT, hyEdge_index_t >::set_refinement ( unsigned int level )

inline

Set the refinement level (equal to number of subintervals).

Here is the call graph for this function:

◆ space_dim()

template<unsigned int hyEdge_dimT, unsigned int space_dimT, typename pt_coord_t = double, typename ConstructorVecT = SmallVec<space_dimT, unsigned int>, typename hyEdge_index_t = unsigned int>

static constexpr unsigned int Geometry::UnitCube< hyEdge_dimT, space_dimT, pt_coord_t, ConstructorVecT, hyEdge_index_t >::space_dim ( )

inlinestaticconstexpr

Return the template parameter representing the dimension of the space.

Return values

space_dimT The dimension of the space.

Member Data Documentation

◆ n_elements_

template<unsigned int hyEdge_dimT, unsigned int space_dimT, typename pt_coord_t = double, typename ConstructorVecT = SmallVec<space_dimT, unsigned int>, typename hyEdge_index_t = unsigned int>

const SmallVec<space_dimT, unsigned int> Geometry::UnitCube< hyEdge_dimT, space_dimT, pt_coord_t, ConstructorVecT, hyEdge_index_t >::n_elements_

private

Number of elements per spatial dimension.

A vector / array comprising the number of elements in each spatial dimension.

◆ n_loc_ref_elem

template<unsigned int hyEdge_dimT, unsigned int space_dimT, typename pt_coord_t = double, typename ConstructorVecT = SmallVec<space_dimT, unsigned int>, typename hyEdge_index_t = unsigned int>

unsigned int Geometry::UnitCube< hyEdge_dimT, space_dimT, pt_coord_t, ConstructorVecT, hyEdge_index_t >::n_loc_ref_elem

private

Number of refined elements per element.

◆ n_subintervals_

template<unsigned int hyEdge_dimT, unsigned int space_dimT, typename pt_coord_t = double, typename ConstructorVecT = SmallVec<space_dimT, unsigned int>, typename hyEdge_index_t = unsigned int>

unsigned int Geometry::UnitCube< hyEdge_dimT, space_dimT, pt_coord_t, ConstructorVecT, hyEdge_index_t >::n_subintervals_

private

Refinment level corresponds to number of subintervals per dimension.

◆ tpcc_elements_

template<unsigned int hyEdge_dimT, unsigned int space_dimT, typename pt_coord_t = double, typename ConstructorVecT = SmallVec<space_dimT, unsigned int>, typename hyEdge_index_t = unsigned int>

const Wrapper::tpcc_t<hyEdge_dimT, space_dimT, TPCC::boundaries::both, hyEdge_index_t> Geometry::UnitCube< hyEdge_dimT, space_dimT, pt_coord_t, ConstructorVecT, hyEdge_index_t >::tpcc_elements_

private

Tensor product chain complex for elements.

◆ tpcc_ref_elem_

template<unsigned int hyEdge_dimT, unsigned int space_dimT, typename pt_coord_t = double, typename ConstructorVecT = SmallVec<space_dimT, unsigned int>, typename hyEdge_index_t = unsigned int>

Wrapper::tpcc_t<hyEdge_dimT, hyEdge_dimT, TPCC::boundaries::both, hyEdge_index_t> Geometry::UnitCube< hyEdge_dimT, space_dimT, pt_coord_t, ConstructorVecT, hyEdge_index_t >::tpcc_ref_elem_

private

Tensor product chain complex for refined elements.

The documentation for this class was generated from the following file:

/home/runner/work/HyperHDG/HyperHDG/include/HyperHDG/geometry/unit_cube.hxx
