Definition of the node types of a cubic hypergraph. More...

#include <cubic.hxx>

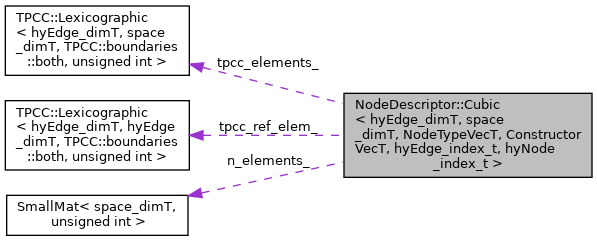

Collaboration diagram for NodeDescriptor::Cubic< hyEdge_dimT, space_dimT, NodeTypeVecT, ConstructorVecT, hyEdge_index_t, hyNode_index_t >:

[legend]

Classes
class	hyEdge
	Definition of the node types of a hypergraph's edges. More...

Public Types
typedef hyEdge	value_type
	Defines the return value of the class to be a `hyEdge`. More...

typedef ConstructorVecT	constructor_value_type
	Defines the value type of input argument for standard constructor. More...

Public Member Functions
	Cubic (const ConstructorVecT &n_elements)
	Construct a node descriptor of a cubic hypergraph. More...

	Cubic (const Topology::Cubic< hyEdge_dimT, space_dimT > &other)
	Construct a cubic node descruiptor from a cubic topology. More...

const value_type	operator[] (const hyEdge_index_t index) const
	Get topological hyperedge of given index. More...

const ConstructorVecT &	n_elements () const
	Return the array / vector of elements per dimensions. More...

const hyEdge_index_t	n_hyEdges () const
	Returns the number of hyperedges making up the hypergraph. More...

unsigned int	get_refinement () const
	Return the refinement level (equal to number of subintervals). More...

void	set_refinement (unsigned int level)
	Set the refinement level (equal to number of subintervals). More...

Static Public Member Functions
static constexpr unsigned int	hyEdge_dim ()
	Return the template parameter representing the dimension of a hyperedge. More...

static constexpr unsigned int	space_dim ()
	Return the template parameter representing the dimension of the space. More...

Private Attributes
const ConstructorVecT	n_elements_
	Number of elements per spatial dimension. More...

const Wrapper::tpcc_t< hyEdge_dimT, space_dimT, TPCC::boundaries::both, hyNode_index_t >	tpcc_elements_
	Tensor product chain complex for elements. More...

unsigned int	n_subintervals_
	Refinment level corresponds to number of subintervals per dimension. More...

Wrapper::tpcc_t< hyEdge_dimT, hyEdge_dimT, TPCC::boundaries::both, hyNode_index_t >	tpcc_ref_elem_
	Tensor product chain complex for refined elements of hypergedge. More...

hyEdge_index_t	n_hyEdges_
	Total amount of hyperedges in hypergraph. More...

Detailed Description

template<unsigned int hyEdge_dimT, unsigned int space_dimT, typename NodeTypeVecT = SmallVec<2 * hyEdge_dimT, unsigned int>, typename ConstructorVecT = SmallVec<space_dimT, unsigned int>, typename hyEdge_index_t = unsigned int, typename hyNode_index_t = hyEdge_index_t>
class NodeDescriptor::Cubic< hyEdge_dimT, space_dimT, NodeTypeVecT, ConstructorVecT, hyEdge_index_t, hyNode_index_t >

Definition of the node types of a cubic hypergraph.

In a cubic hypergraph \(\mathcal G\), the nodes receive their indices according to their positions. Thus, the node type \(t\) of node \(\mathcal N\) is defined as

\[ t = \sum_{n=1}^\text{space_dim} 3^n \left[ ( \Pi_n \mathcal N == \{ \min \Pi_n \mathcal G \} ) + 2 ( \Pi_n \mathcal N == \{ \max \Pi_n \mathcal G \} ) \right], \]

where \(\Pi_n\) is the orthonormal projection onto the \(n\)-th axis of the canonical basis.

Authors: Guido Kanschat, Heidelberg University, 2019–2020.; Andreas Rupp, Heidelberg University, 2019–2020.

Member Typedef Documentation

◆ constructor_value_type

template<unsigned int hyEdge_dimT, unsigned int space_dimT, typename NodeTypeVecT = SmallVec<2 * hyEdge_dimT, unsigned int>, typename ConstructorVecT = SmallVec<space_dimT, unsigned int>, typename hyEdge_index_t = unsigned int, typename hyNode_index_t = hyEdge_index_t>

typedef ConstructorVecT NodeDescriptor::Cubic< hyEdge_dimT, space_dimT, NodeTypeVecT, ConstructorVecT, hyEdge_index_t, hyNode_index_t >::constructor_value_type

Defines the value type of input argument for standard constructor.

◆ value_type

template<unsigned int hyEdge_dimT, unsigned int space_dimT, typename NodeTypeVecT = SmallVec<2 * hyEdge_dimT, unsigned int>, typename ConstructorVecT = SmallVec<space_dimT, unsigned int>, typename hyEdge_index_t = unsigned int, typename hyNode_index_t = hyEdge_index_t>

typedef hyEdge NodeDescriptor::Cubic< hyEdge_dimT, space_dimT, NodeTypeVecT, ConstructorVecT, hyEdge_index_t, hyNode_index_t >::value_type

Defines the return value of the class to be a hyEdge.

Constructor & Destructor Documentation

◆ Cubic() [1/2]

template<unsigned int hyEdge_dimT, unsigned int space_dimT, typename NodeTypeVecT = SmallVec<2 * hyEdge_dimT, unsigned int>, typename ConstructorVecT = SmallVec<space_dimT, unsigned int>, typename hyEdge_index_t = unsigned int, typename hyNode_index_t = hyEdge_index_t>

NodeDescriptor::Cubic< hyEdge_dimT, space_dimT, NodeTypeVecT, ConstructorVecT, hyEdge_index_t, hyNode_index_t >::Cubic ( const ConstructorVecT & n_elements )

inline

Construct a node descriptor of a cubic hypergraph.

Parameters

n_elements A vector/array containing number of elements per spatial dimension.

◆ Cubic() [2/2]

template<unsigned int hyEdge_dimT, unsigned int space_dimT, typename NodeTypeVecT = SmallVec<2 * hyEdge_dimT, unsigned int>, typename ConstructorVecT = SmallVec<space_dimT, unsigned int>, typename hyEdge_index_t = unsigned int, typename hyNode_index_t = hyEdge_index_t>

NodeDescriptor::Cubic< hyEdge_dimT, space_dimT, NodeTypeVecT, ConstructorVecT, hyEdge_index_t, hyNode_index_t >::Cubic ( const Topology::Cubic< hyEdge_dimT, space_dimT > & other )

inline

Construct a cubic node descruiptor from a cubic topology.

Parameters

other Topology to which the node descriptor will fit.

Member Function Documentation

◆ get_refinement()

template<unsigned int hyEdge_dimT, unsigned int space_dimT, typename NodeTypeVecT = SmallVec<2 * hyEdge_dimT, unsigned int>, typename ConstructorVecT = SmallVec<space_dimT, unsigned int>, typename hyEdge_index_t = unsigned int, typename hyNode_index_t = hyEdge_index_t>

unsigned int NodeDescriptor::Cubic< hyEdge_dimT, space_dimT, NodeTypeVecT, ConstructorVecT, hyEdge_index_t, hyNode_index_t >::get_refinement ( ) const

inline

Return the refinement level (equal to number of subintervals).

◆ hyEdge_dim()

template<unsigned int hyEdge_dimT, unsigned int space_dimT, typename NodeTypeVecT = SmallVec<2 * hyEdge_dimT, unsigned int>, typename ConstructorVecT = SmallVec<space_dimT, unsigned int>, typename hyEdge_index_t = unsigned int, typename hyNode_index_t = hyEdge_index_t>

static constexpr unsigned int NodeDescriptor::Cubic< hyEdge_dimT, space_dimT, NodeTypeVecT, ConstructorVecT, hyEdge_index_t, hyNode_index_t >::hyEdge_dim ( )

inlinestaticconstexpr

Return the template parameter representing the dimension of a hyperedge.

Return values

hyEdge_dimT The dimension of a hyperedge.

◆ n_elements()

template<unsigned int hyEdge_dimT, unsigned int space_dimT, typename NodeTypeVecT = SmallVec<2 * hyEdge_dimT, unsigned int>, typename ConstructorVecT = SmallVec<space_dimT, unsigned int>, typename hyEdge_index_t = unsigned int, typename hyNode_index_t = hyEdge_index_t>

const ConstructorVecT& NodeDescriptor::Cubic< hyEdge_dimT, space_dimT, NodeTypeVecT, ConstructorVecT, hyEdge_index_t, hyNode_index_t >::n_elements ( ) const

inline

Return the array / vector of elements per dimensions.

Return values

n_elements A vector / array containing the elements in the repective dimension.

◆ n_hyEdges()

template<unsigned int hyEdge_dimT, unsigned int space_dimT, typename NodeTypeVecT = SmallVec<2 * hyEdge_dimT, unsigned int>, typename ConstructorVecT = SmallVec<space_dimT, unsigned int>, typename hyEdge_index_t = unsigned int, typename hyNode_index_t = hyEdge_index_t>

const hyEdge_index_t NodeDescriptor::Cubic< hyEdge_dimT, space_dimT, NodeTypeVecT, ConstructorVecT, hyEdge_index_t, hyNode_index_t >::n_hyEdges ( ) const

inline

Returns the number of hyperedges making up the hypergraph.

Return values

n_hyperedges The total amount of hyperedges of a hypergraph.

◆ operator[]()

template<unsigned int hyEdge_dimT, unsigned int space_dimT, typename NodeTypeVecT = SmallVec<2 * hyEdge_dimT, unsigned int>, typename ConstructorVecT = SmallVec<space_dimT, unsigned int>, typename hyEdge_index_t = unsigned int, typename hyNode_index_t = hyEdge_index_t>

const value_type NodeDescriptor::Cubic< hyEdge_dimT, space_dimT, NodeTypeVecT, ConstructorVecT, hyEdge_index_t, hyNode_index_t >::operator[] ( const hyEdge_index_t index ) const

inline

Get topological hyperedge of given index.

This function returns the hyperedge of the given index, i.e., it returns the hyperedge 's node description info.

Parameters

index The index of the hyperedge to be returned.

Return values

hyperedge Information on the hyperedge's nodes (cf. value_type).

◆ set_refinement()

template<unsigned int hyEdge_dimT, unsigned int space_dimT, typename NodeTypeVecT = SmallVec<2 * hyEdge_dimT, unsigned int>, typename ConstructorVecT = SmallVec<space_dimT, unsigned int>, typename hyEdge_index_t = unsigned int, typename hyNode_index_t = hyEdge_index_t>

void NodeDescriptor::Cubic< hyEdge_dimT, space_dimT, NodeTypeVecT, ConstructorVecT, hyEdge_index_t, hyNode_index_t >::set_refinement ( unsigned int level )

inline

Set the refinement level (equal to number of subintervals).

Here is the call graph for this function:

◆ space_dim()

template<unsigned int hyEdge_dimT, unsigned int space_dimT, typename NodeTypeVecT = SmallVec<2 * hyEdge_dimT, unsigned int>, typename ConstructorVecT = SmallVec<space_dimT, unsigned int>, typename hyEdge_index_t = unsigned int, typename hyNode_index_t = hyEdge_index_t>

static constexpr unsigned int NodeDescriptor::Cubic< hyEdge_dimT, space_dimT, NodeTypeVecT, ConstructorVecT, hyEdge_index_t, hyNode_index_t >::space_dim ( )

inlinestaticconstexpr

Return the template parameter representing the dimension of the space.

Return values

space_dimT The dimension of the space.

Member Data Documentation

◆ n_elements_

template<unsigned int hyEdge_dimT, unsigned int space_dimT, typename NodeTypeVecT = SmallVec<2 * hyEdge_dimT, unsigned int>, typename ConstructorVecT = SmallVec<space_dimT, unsigned int>, typename hyEdge_index_t = unsigned int, typename hyNode_index_t = hyEdge_index_t>

const ConstructorVecT NodeDescriptor::Cubic< hyEdge_dimT, space_dimT, NodeTypeVecT, ConstructorVecT, hyEdge_index_t, hyNode_index_t >::n_elements_

private

Number of elements per spatial dimension.

◆ n_hyEdges_

template<unsigned int hyEdge_dimT, unsigned int space_dimT, typename NodeTypeVecT = SmallVec<2 * hyEdge_dimT, unsigned int>, typename ConstructorVecT = SmallVec<space_dimT, unsigned int>, typename hyEdge_index_t = unsigned int, typename hyNode_index_t = hyEdge_index_t>

hyEdge_index_t NodeDescriptor::Cubic< hyEdge_dimT, space_dimT, NodeTypeVecT, ConstructorVecT, hyEdge_index_t, hyNode_index_t >::n_hyEdges_

private

Total amount of hyperedges in hypergraph.

◆ n_subintervals_

template<unsigned int hyEdge_dimT, unsigned int space_dimT, typename NodeTypeVecT = SmallVec<2 * hyEdge_dimT, unsigned int>, typename ConstructorVecT = SmallVec<space_dimT, unsigned int>, typename hyEdge_index_t = unsigned int, typename hyNode_index_t = hyEdge_index_t>

unsigned int NodeDescriptor::Cubic< hyEdge_dimT, space_dimT, NodeTypeVecT, ConstructorVecT, hyEdge_index_t, hyNode_index_t >::n_subintervals_

private

Refinment level corresponds to number of subintervals per dimension.

◆ tpcc_elements_

template<unsigned int hyEdge_dimT, unsigned int space_dimT, typename NodeTypeVecT = SmallVec<2 * hyEdge_dimT, unsigned int>, typename ConstructorVecT = SmallVec<space_dimT, unsigned int>, typename hyEdge_index_t = unsigned int, typename hyNode_index_t = hyEdge_index_t>

const Wrapper::tpcc_t<hyEdge_dimT, space_dimT, TPCC::boundaries::both, hyNode_index_t> NodeDescriptor::Cubic< hyEdge_dimT, space_dimT, NodeTypeVecT, ConstructorVecT, hyEdge_index_t, hyNode_index_t >::tpcc_elements_

private

Tensor product chain complex for elements.

◆ tpcc_ref_elem_

template<unsigned int hyEdge_dimT, unsigned int space_dimT, typename NodeTypeVecT = SmallVec<2 * hyEdge_dimT, unsigned int>, typename ConstructorVecT = SmallVec<space_dimT, unsigned int>, typename hyEdge_index_t = unsigned int, typename hyNode_index_t = hyEdge_index_t>

Wrapper::tpcc_t<hyEdge_dimT, hyEdge_dimT, TPCC::boundaries::both, hyNode_index_t> NodeDescriptor::Cubic< hyEdge_dimT, space_dimT, NodeTypeVecT, ConstructorVecT, hyEdge_index_t, hyNode_index_t >::tpcc_ref_elem_

private

Tensor product chain complex for refined elements of hypergedge.

The documentation for this class was generated from the following file:

/home/runner/work/HyperHDG/HyperHDG/include/HyperHDG/node_descriptor/cubic.hxx
