The class template uniting topology and geometry of a hypergraph with the topology of the skeleton space of the HDG method. More...

#include <hdg_hypergraph.hxx>

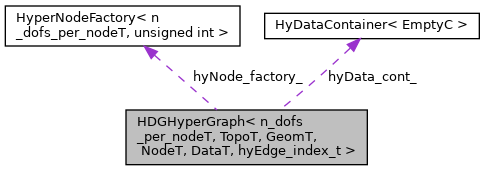

Collaboration diagram for HDGHyperGraph< n_dofs_per_nodeT, TopoT, GeomT, NodeT, DataT, hyEdge_index_t >:

[legend]

Classes
struct	hyEdge
	The type for a hyperedge returned by `operator`[]. More...

class	iterator
	Iterator for `struct` `hyEdge` returned by `operator`[]. More...

Public Member Functions
	HDGHyperGraph (const typename TopoT::constructor_value_type &construct_topo)
	Construct HDGHyperGraph from `constructor_value_type`. More...

	HDGHyperGraph (const typename TopoT::constructor_value_type &construct_topo, const typename GeomT::constructor_value_type &construct_geom)
	Construct HDGHyperGraph from `constructor_value_type`. More...

	HDGHyperGraph (std::shared_ptr< TopoT > topo, std::shared_ptr< GeomT > geom, std::shared_ptr< NodeT > node)
	Construct HDGHyperGraph from existing topology and geometry. More...

value_type	operator[] (const hyEdge_index_t index)
	Subscript operator of a HDGHyperGraph. More...

HDGHyperGraph< n_dofs_per_nodeT, TopoT, GeomT, NodeT, DataT, hyEdge_index_t >::iterator	begin ()
	Return iterator to first hyEdge of HDGHyperGraph. More...

HDGHyperGraph< n_dofs_per_nodeT, TopoT, GeomT, NodeT, DataT, hyEdge_index_t >::iterator	end ()
	Return iterator to the end of hyEdge list. More...

const HyperNodeFactory< n_dofs_per_nodeT, hyEdge_index_t > &	hyNode_factory () const
	Return const reference to HyperNodeFactory. More...

const TopoT::value_type	hyEdge_topology (const hyEdge_index_t index) const
	Topological information of prescribed hyperedge. More...

const GeomT::value_type	hyEdge_geometry (const hyEdge_index_t index) const
	Geometrical information of prescribed hyperedge. More...

const NodeT::value_type	hyNode_descriptor (const hyEdge_index_t index) const
	Nodal information of prescribed hyperedge. More...

DataT &	hyEdge_data (const hyEdge_index_t index)
	Data of prescribed hyperedge. More...

const hyEdge_index_t	n_hyEdges () const
	Return the number of hyperedges making up the hypergraph. More...

const hyEdge_index_t	n_hyNodes () const
	Return the number of hypernodes making up the hypergraph. More...

template<typename dof_index_t = unsigned int>
const dof_index_t	n_global_dofs () const
	Returns the total amount of degrees of freedom in the considered hypergraph. More...

unsigned int	get_refinement () const
	Return the refinement level of the hypergraph. More...

void	set_refinement (unsigned int level)
	Set the refinement level of the hypergraph. More...

Static Public Member Functions
static constexpr unsigned int	hyEdge_dim ()
	Returns the template parameter representing the dimension of a hyperedge. More...

static constexpr unsigned int	space_dim ()
	Returns the template parameter representing the dimension of the space. More...

static constexpr unsigned int	n_dofs_per_node ()
	Returns the template parameter representing the amount of dofs per node. More...

Private Types
typedef struct HDGHyperGraph::hyEdge	value_type
	The type for a hyperedge returned by `operator`[]. More...

Private Attributes
std::shared_ptr< TopoT >	hyGraph_topology_
	Topology of the hypergraph. More...

std::shared_ptr< GeomT >	hyGraph_geometry_
	Geometry of the hypergraph. More...

std::shared_ptr< NodeT >	hyGraph_node_des_
	Node descriptions of the hypergraph. More...

HyperNodeFactory< n_dofs_per_nodeT, hyEdge_index_t >	hyNode_factory_
	Hypernode factory administrating the access to degrees of freedom. More...

HyDataContainer< DataT >	hyData_cont_
	Hypernode factory administrating the access to degrees of freedom. More...

Detailed Description

template<unsigned int n_dofs_per_nodeT, class TopoT, class GeomT, class NodeT, class DataT = EmptyC, typename hyEdge_index_t = unsigned int>
class HDGHyperGraph< n_dofs_per_nodeT, TopoT, GeomT, NodeT, DataT, hyEdge_index_t >

The class template uniting topology and geometry of a hypergraph with the topology of the skeleton space of the HDG method.

The main class representing a hypergraph. It uses a class Topology to represent the collection of nodes and edges as well as a class Geometry presenting the physical coordinates of the edges. It behaves like a random access container of hyperedges and has additional access to its nodes.

In our abstraction, nodes only carry degrees of freedom. Thus, they can be obtained from one object HyperNodeFactory for any graph. Their location, if such a notion is reasonable, must be determined by that of the boundaries of an edge. The meaning of their degrees of freedom is decided by the local solvers of the HDG method applied. The Geometry class may use degrees of freedom of the nodes as well.

Template Parameters

n_dofs_per_nodeT	The number of degrees of freedom of a single hypernode which is assumed to be the same for all hypernodes.
TopoT	Class that contains the topology of the hypergraph. This class is needs to provide a getter function to the topological information of a hyperedge of given index and can be arbitrarily implemented.
GeomT	Class that contains the topology of the hypergraph. This class is needs to provide a getter function to the topological information of a hyperedge of given index and can be arbitrarily implemented.
NodeDescT	Class that contains the descriptions of hyperedges' faces.
hyEdge_index_t	Unsigned integer type specification. Default is unsigned int.

Authors: Guido Kanschat, Heidelberg University, 2019–2020.; Andreas Rupp, Heidelberg University, 2019–2020.

Member Typedef Documentation

◆ value_type

template<unsigned int n_dofs_per_nodeT, class TopoT , class GeomT , class NodeT , class DataT = EmptyC, typename hyEdge_index_t = unsigned int>

typedef struct HDGHyperGraph::hyEdge HDGHyperGraph< n_dofs_per_nodeT, TopoT, GeomT, NodeT, DataT, hyEdge_index_t >::value_type

private

The type for a hyperedge returned by operator[].

This typedef struct is returned by the operator[] of an HDGHyperGraph. It contains topological and geometrical information about a single hyperedge. It is therefore defined as the value_type of class HDGHyperGraph.

Constructor & Destructor Documentation

◆ HDGHyperGraph() [1/3]

template<unsigned int n_dofs_per_nodeT, class TopoT , class GeomT , class NodeT , class DataT = EmptyC, typename hyEdge_index_t = unsigned int>

HDGHyperGraph< n_dofs_per_nodeT, TopoT, GeomT, NodeT, DataT, hyEdge_index_t >::HDGHyperGraph ( const typename TopoT::constructor_value_type & construct_topo )

inline

Construct HDGHyperGraph from constructor_value_type.

This is one of two standard ways of constructing a hypergraph. That is, a hypergraph is constructed by providing the necessary data in form of the respective constructor_value_type.

Parameters

construct_topo Information needed to deduce topological and geometrical data to construct a HDGHyperGraph.

◆ HDGHyperGraph() [2/3]

template<unsigned int n_dofs_per_nodeT, class TopoT , class GeomT , class NodeT , class DataT = EmptyC, typename hyEdge_index_t = unsigned int>

HDGHyperGraph< n_dofs_per_nodeT, TopoT, GeomT, NodeT, DataT, hyEdge_index_t >::HDGHyperGraph	(	const typename TopoT::constructor_value_type &	construct_topo,
		const typename GeomT::constructor_value_type &	construct_geom
	)

inline

Construct HDGHyperGraph from constructor_value_type.

This is one of two standard ways of constructing a hypergraph. That is, a hypergraph is constructed by providing the necessary data to construct its topology and its geometry seperately in form of the respective constructor_value_type (plural, two).

Parameters

construct_topo	Information needed to deduce topological data.
construct_geom	Information needed to deduce geometrical data.

◆ HDGHyperGraph() [3/3]

template<unsigned int n_dofs_per_nodeT, class TopoT , class GeomT , class NodeT , class DataT = EmptyC, typename hyEdge_index_t = unsigned int>

HDGHyperGraph< n_dofs_per_nodeT, TopoT, GeomT, NodeT, DataT, hyEdge_index_t >::HDGHyperGraph	(	std::shared_ptr< TopoT >	topo,
		std::shared_ptr< GeomT >	geom,
		std::shared_ptr< NodeT >	node
	)

inline

Construct HDGHyperGraph from existing topology and geometry.

This is one of two standard ways of constructing a hypergraph. That is, a hypergraph is constructed by providing the necessary data to construct its topology and its geometry seperately in form of the respective constructor_value_type (plural, two).

Parameters

topo	Information needed to deduce topological data.
geom	Information needed to deduce geometrical data.
node	Information needed to deduce nodal data.

Member Function Documentation

◆ begin()

template<unsigned int n_dofs_per_nodeT, class TopoT , class GeomT , class NodeT , class DataT = EmptyC, typename hyEdge_index_t = unsigned int>

HDGHyperGraph<n_dofs_per_nodeT, TopoT, GeomT, NodeT, DataT, hyEdge_index_t>::iterator HDGHyperGraph< n_dofs_per_nodeT, TopoT, GeomT, NodeT, DataT, hyEdge_index_t >::begin ( )

inline

Return iterator to first hyEdge of HDGHyperGraph.

This function returns an HDGHyperGraph::iterator that refers to the first hyEdge of the hypergraph (index = 0). Thus, it can be used to mark the starting point in for_each loops.

Return values

hyEdge Iterator referring to first hyEdge.

◆ end()

template<unsigned int n_dofs_per_nodeT, class TopoT , class GeomT , class NodeT , class DataT = EmptyC, typename hyEdge_index_t = unsigned int>

HDGHyperGraph<n_dofs_per_nodeT, TopoT, GeomT, NodeT, DataT, hyEdge_index_t>::iterator HDGHyperGraph< n_dofs_per_nodeT, TopoT, GeomT, NodeT, DataT, hyEdge_index_t >::end ( )

inline

Return iterator to the end of hyEdge list.

This function returns an HDGHyperGraph::iterator that refers to the position of an (non- existing) hyEdge of the hypergraph (index = n_hyEdges), i.e., the position directly after the last valid entry of the HDGHyperGraph. Thus, it can be used to mark the ending point in for_each loops.

Return values

hyEdge Iterator referring to position behind last hyEdge.

◆ get_refinement()

template<unsigned int n_dofs_per_nodeT, class TopoT , class GeomT , class NodeT , class DataT = EmptyC, typename hyEdge_index_t = unsigned int>

unsigned int HDGHyperGraph< n_dofs_per_nodeT, TopoT, GeomT, NodeT, DataT, hyEdge_index_t >::get_refinement ( ) const

inline

Return the refinement level of the hypergraph.

◆ hyEdge_data()

template<unsigned int n_dofs_per_nodeT, class TopoT , class GeomT , class NodeT , class DataT = EmptyC, typename hyEdge_index_t = unsigned int>

DataT& HDGHyperGraph< n_dofs_per_nodeT, TopoT, GeomT, NodeT, DataT, hyEdge_index_t >::hyEdge_data ( const hyEdge_index_t index )

inline

Data of prescribed hyperedge.

Parameters

index Index of the hyperedge to be returned.

Return values

hyEdge_data The data saved with respect to a hyperede.

◆ hyEdge_dim()

template<unsigned int n_dofs_per_nodeT, class TopoT , class GeomT , class NodeT , class DataT = EmptyC, typename hyEdge_index_t = unsigned int>

static constexpr unsigned int HDGHyperGraph< n_dofs_per_nodeT, TopoT, GeomT, NodeT, DataT, hyEdge_index_t >::hyEdge_dim ( )

inlinestaticconstexpr

Returns the template parameter representing the dimension of a hyperedge.

Return values

hyEdge_dim The dimension of a hyperedge.

◆ hyEdge_geometry()

template<unsigned int n_dofs_per_nodeT, class TopoT , class GeomT , class NodeT , class DataT = EmptyC, typename hyEdge_index_t = unsigned int>

const GeomT::value_type HDGHyperGraph< n_dofs_per_nodeT, TopoT, GeomT, NodeT, DataT, hyEdge_index_t >::hyEdge_geometry ( const hyEdge_index_t index ) const

inline

Geometrical information of prescribed hyperedge.

Return the geometrical information of a specific hyperedge identified via its index. This function can be used to bypass the subscript operator which returns topological and geometric information about a hyperedge of given index.

Parameters

index Index of the hyperedge to be returned.

Return values

hyEdge_geometry Geometrical information about hyperedge.

◆ hyEdge_topology()

template<unsigned int n_dofs_per_nodeT, class TopoT , class GeomT , class NodeT , class DataT = EmptyC, typename hyEdge_index_t = unsigned int>

const TopoT::value_type HDGHyperGraph< n_dofs_per_nodeT, TopoT, GeomT, NodeT, DataT, hyEdge_index_t >::hyEdge_topology ( const hyEdge_index_t index ) const

inline

Topological information of prescribed hyperedge.

Return the topological information of a specific hyperedge identified via its index. This function can be used to bypass the subscript operator which returns topological and geometric information about a hyperedge of given index.

Parameters

index Index of the hyperedge to be returned.

Return values

hyEdge_topology Topological information about hyperedge.

◆ hyNode_descriptor()

template<unsigned int n_dofs_per_nodeT, class TopoT , class GeomT , class NodeT , class DataT = EmptyC, typename hyEdge_index_t = unsigned int>

const NodeT::value_type HDGHyperGraph< n_dofs_per_nodeT, TopoT, GeomT, NodeT, DataT, hyEdge_index_t >::hyNode_descriptor ( const hyEdge_index_t index ) const

inline

Nodal information of prescribed hyperedge.

Parameters

index Index of the hyperedge to be returned.

Return values

hyEdge_nodedescriptor Node types of nodes of a hyperedge.

◆ hyNode_factory()

template<unsigned int n_dofs_per_nodeT, class TopoT , class GeomT , class NodeT , class DataT = EmptyC, typename hyEdge_index_t = unsigned int>

const HyperNodeFactory<n_dofs_per_nodeT, hyEdge_index_t>& HDGHyperGraph< n_dofs_per_nodeT, TopoT, GeomT, NodeT, DataT, hyEdge_index_t >::hyNode_factory ( ) const

inline

Return const reference to HyperNodeFactory.

This function returns an HyperNodeFactory handling the access to the degrees of freedom encoded in some vector type.

Return values

hypernode_factory The HyperNodeFactory belonging the hypergraph.

◆ n_dofs_per_node()

template<unsigned int n_dofs_per_nodeT, class TopoT , class GeomT , class NodeT , class DataT = EmptyC, typename hyEdge_index_t = unsigned int>

static constexpr unsigned int HDGHyperGraph< n_dofs_per_nodeT, TopoT, GeomT, NodeT, DataT, hyEdge_index_t >::n_dofs_per_node ( )

inlinestaticconstexpr

Returns the template parameter representing the amount of dofs per node.

Return values

n_dofs_per_nodeT The amount of degrees of freedom per node.

◆ n_global_dofs()

template<unsigned int n_dofs_per_nodeT, class TopoT , class GeomT , class NodeT , class DataT = EmptyC, typename hyEdge_index_t = unsigned int>

template<typename dof_index_t = unsigned int>

const dof_index_t HDGHyperGraph< n_dofs_per_nodeT, TopoT, GeomT, NodeT, DataT, hyEdge_index_t >::n_global_dofs ( ) const

inline

Returns the total amount of degrees of freedom in the considered hypergraph.

Return values

n_global_dofs The total amount of degreees of freedom in the considered hypergraph.

◆ n_hyEdges()

template<unsigned int n_dofs_per_nodeT, class TopoT , class GeomT , class NodeT , class DataT = EmptyC, typename hyEdge_index_t = unsigned int>

const hyEdge_index_t HDGHyperGraph< n_dofs_per_nodeT, TopoT, GeomT, NodeT, DataT, hyEdge_index_t >::n_hyEdges ( ) const

inline

Return the number of hyperedges making up the hypergraph.

Return values

n_hyEdges The total amount of hyperedges of a hypergraph.

◆ n_hyNodes()

template<unsigned int n_dofs_per_nodeT, class TopoT , class GeomT , class NodeT , class DataT = EmptyC, typename hyEdge_index_t = unsigned int>

const hyEdge_index_t HDGHyperGraph< n_dofs_per_nodeT, TopoT, GeomT, NodeT, DataT, hyEdge_index_t >::n_hyNodes ( ) const

inline

Return the number of hypernodes making up the hypergraph.

Return values

n_hypernodes The total amount of hypernodes of a hypergraph.

◆ operator[]()

template<unsigned int n_dofs_per_nodeT, class TopoT , class GeomT , class NodeT , class DataT = EmptyC, typename hyEdge_index_t = unsigned int>

value_type HDGHyperGraph< n_dofs_per_nodeT, TopoT, GeomT, NodeT, DataT, hyEdge_index_t >::operator[] ( const hyEdge_index_t index )

inline

Subscript operator of a HDGHyperGraph.

The subscript operator takes an index referring to an hyperedge and returns the respective hyEdge containing its topological and geometrical information. Thus, this operator can be bypassed by using the functions hyEdge_topology (only returning the topological data) and hyEdge_geometry (ony returning the geometrical data).

Parameters

index Index of the hyEdge to be returned.

Return values

hyEdge The hyEdge of the given index.

◆ set_refinement()

template<unsigned int n_dofs_per_nodeT, class TopoT , class GeomT , class NodeT , class DataT = EmptyC, typename hyEdge_index_t = unsigned int>

void HDGHyperGraph< n_dofs_per_nodeT, TopoT, GeomT, NodeT, DataT, hyEdge_index_t >::set_refinement ( unsigned int level )

inline

Set the refinement level of the hypergraph.

◆ space_dim()

template<unsigned int n_dofs_per_nodeT, class TopoT , class GeomT , class NodeT , class DataT = EmptyC, typename hyEdge_index_t = unsigned int>

static constexpr unsigned int HDGHyperGraph< n_dofs_per_nodeT, TopoT, GeomT, NodeT, DataT, hyEdge_index_t >::space_dim ( )

inlinestaticconstexpr

Returns the template parameter representing the dimension of the space.

Return values

space_dim The dimension of the space.

Member Data Documentation

◆ hyData_cont_

template<unsigned int n_dofs_per_nodeT, class TopoT , class GeomT , class NodeT , class DataT = EmptyC, typename hyEdge_index_t = unsigned int>

HyDataContainer<DataT> HDGHyperGraph< n_dofs_per_nodeT, TopoT, GeomT, NodeT, DataT, hyEdge_index_t >::hyData_cont_

private

Hypernode factory administrating the access to degrees of freedom.

A HyperNodeFactory allowing to connect nodes of the hypergraph to degrees of freedom which are located in some std::vector. Note that this HyperNodeFactory has the same index type for the hypernodes as this class for the hyperedges.

◆ hyGraph_geometry_

template<unsigned int n_dofs_per_nodeT, class TopoT , class GeomT , class NodeT , class DataT = EmptyC, typename hyEdge_index_t = unsigned int>

std::shared_ptr<GeomT> HDGHyperGraph< n_dofs_per_nodeT, TopoT, GeomT, NodeT, DataT, hyEdge_index_t >::hyGraph_geometry_

private

Geometry of the hypergraph.

This object contains the geometry of the hypergraph, i.e., it encodes the geometry of the various hyperedges.

◆ hyGraph_node_des_

template<unsigned int n_dofs_per_nodeT, class TopoT , class GeomT , class NodeT , class DataT = EmptyC, typename hyEdge_index_t = unsigned int>

std::shared_ptr<NodeT> HDGHyperGraph< n_dofs_per_nodeT, TopoT, GeomT, NodeT, DataT, hyEdge_index_t >::hyGraph_node_des_

private

Node descriptions of the hypergraph.

This object contains the nodal information of the hypergraph.

◆ hyGraph_topology_

template<unsigned int n_dofs_per_nodeT, class TopoT , class GeomT , class NodeT , class DataT = EmptyC, typename hyEdge_index_t = unsigned int>

std::shared_ptr<TopoT> HDGHyperGraph< n_dofs_per_nodeT, TopoT, GeomT, NodeT, DataT, hyEdge_index_t >::hyGraph_topology_

private

Topology of the hypergraph.

This object contains the topology of the hypergraph, i.e., it encodes which hyperedges connect which hypernodes.

◆ hyNode_factory_

template<unsigned int n_dofs_per_nodeT, class TopoT , class GeomT , class NodeT , class DataT = EmptyC, typename hyEdge_index_t = unsigned int>

HyperNodeFactory<n_dofs_per_nodeT, hyEdge_index_t> HDGHyperGraph< n_dofs_per_nodeT, TopoT, GeomT, NodeT, DataT, hyEdge_index_t >::hyNode_factory_

private

Hypernode factory administrating the access to degrees of freedom.

A HyperNodeFactory allowing to connect nodes of the hypergraph to degrees of freedom which are located in some std::vector. Note that this HyperNodeFactory has the same index type for the hypernodes as this class for the hyperedges.

The documentation for this class was generated from the following file:

/home/runner/work/HyperHDG/HyperHDG/include/HyperHDG/hdg_hypergraph.hxx

Classes

Public Member Functions

Static Public Member Functions

Private Types

Private Attributes

Detailed Description

template<unsigned int n_dofs_per_nodeT, class TopoT, class GeomT, class NodeT, class DataT = EmptyC, typename hyEdge_index_t = unsigned int> class HDGHyperGraph< n_dofs_per_nodeT, TopoT, GeomT, NodeT, DataT, hyEdge_index_t >

Member Typedef Documentation

◆ value_type

Constructor & Destructor Documentation

◆ HDGHyperGraph() [1/3]

◆ HDGHyperGraph() [2/3]

◆ HDGHyperGraph() [3/3]

Member Function Documentation

◆ begin()

◆ end()

◆ get_refinement()

◆ hyEdge_data()

◆ hyEdge_dim()

◆ hyEdge_geometry()

◆ hyEdge_topology()

◆ hyNode_descriptor()

◆ hyNode_factory()

◆ n_dofs_per_node()

◆ n_global_dofs()

◆ n_hyEdges()

◆ n_hyNodes()

◆ operator[]()

◆ set_refinement()

◆ space_dim()

Member Data Documentation

◆ hyData_cont_

◆ hyGraph_geometry_

◆ hyGraph_node_des_

◆ hyGraph_topology_

◆ hyNode_factory_

template<unsigned int n_dofs_per_nodeT, class TopoT, class GeomT, class NodeT, class DataT = EmptyC, typename hyEdge_index_t = unsigned int>
class HDGHyperGraph< n_dofs_per_nodeT, TopoT, GeomT, NodeT, DataT, hyEdge_index_t >
