HDGHyperGraph< n_dofs_per_nodeT, TopoT, GeomT, NodeT, DataT, hyEdge_index_t >::iterator Class Reference

Iterator for struct hyEdge returned by operator[]. More...

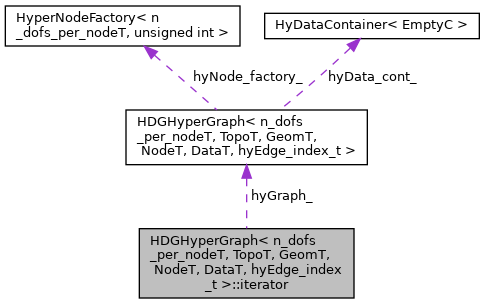

Collaboration diagram for HDGHyperGraph< n_dofs_per_nodeT, TopoT, GeomT, NodeT, DataT, hyEdge_index_t >::iterator:

Public Member Functions
	iterator (HDGHyperGraph &hyGraph, const hyEdge_index_t index)
	Construct an iterator from an HDGHyperGraph and an index. More...
	iterator (const iterator &other)
	Copy–construct an iterator from another iterator. More...
iterator &	operator= (const iterator &other)=default
	Copy–assign an iterator from another iterator. More...
iterator &	operator++ ()
	Increment iterator and return incremented iterator. More...
iterator &	operator-- ()
	Decrement iterator and return incremented iterator. More...
iterator	operator++ (int)
	Increment iterator and return old iterator. More...
iterator	operator-- (int)
	Decrement iterator and return old iterator. More...
HDGHyperGraph::value_type	operator* ()
	Dereference iterator to hyEdge. More...
bool	operator== (const iterator &other)
	Check for equality with another iterator. More...

Private Attributes
HDGHyperGraph &	hyGraph_
	Reference to the HDGHyperGraph of the iterator. More...
hyEdge_index_t	index_
	Index of the hyEdge of the iterator. More...

Detailed Description

template<unsigned int n_dofs_per_nodeT, class TopoT, class GeomT, class NodeT, class DataT = EmptyC, typename hyEdge_index_t = unsigned int>
class HDGHyperGraph< n_dofs_per_nodeT, TopoT, GeomT, NodeT, DataT, hyEdge_index_t >::iterator

Iterator for struct hyEdge returned by operator[].

---

Iterator that allows to go through the hyperedges of a hypergraph forwards and backwards. This iterator fulfills the preconditions to allow the use of std::for_each on the set of hyperedges that are contained in the HDGHyperGraph.

Constructor & Destructor Documentation

iterator() [1/2]

template<unsigned int n_dofs_per_nodeT, class TopoT , class GeomT , class NodeT , class DataT = EmptyC, typename hyEdge_index_t = unsigned int>

HDGHyperGraph< n_dofs_per_nodeT, TopoT, GeomT, NodeT, DataT, hyEdge_index_t >::iterator::iterator ( HDGHyperGraph &  hyGraph, const hyEdge_index_t  index  )

inline

Construct an iterator from an HDGHyperGraph and an index.

---

Construct HDGHyperGraph::iterator by passing over an HDGHyperGraph object and the index the iterator is supposed to dot at.

Parameters

hyGraph	The HDGHyperGraph, the iterator refers to.
index	Index of the object, the iterator dots at.

iterator() [2/2]

template<unsigned int n_dofs_per_nodeT, class TopoT , class GeomT , class NodeT , class DataT = EmptyC, typename hyEdge_index_t = unsigned int>

HDGHyperGraph< n_dofs_per_nodeT, TopoT, GeomT, NodeT, DataT, hyEdge_index_t >::iterator::iterator ( const iterator &  other )

inline

Copy–construct an iterator from another iterator.

---

Construct HDGHyperGraph::iterator as copy of another one.

Parameters

other

Other iterator which is copied.

Member Function Documentation

operator*()

template<unsigned int n_dofs_per_nodeT, class TopoT , class GeomT , class NodeT , class DataT = EmptyC, typename hyEdge_index_t = unsigned int>

HDGHyperGraph::value_type HDGHyperGraph< n_dofs_per_nodeT, TopoT, GeomT, NodeT, DataT, hyEdge_index_t >::iterator::operator* ( )

inline

Dereference iterator to hyEdge.

---

This function dereferences the iterator and returns the hyEdge this iterator dots at.

Return values

hyEdge

The hyperedge described by the iterator.

operator++() [1/2]

template<unsigned int n_dofs_per_nodeT, class TopoT , class GeomT , class NodeT , class DataT = EmptyC, typename hyEdge_index_t = unsigned int>

iterator& HDGHyperGraph< n_dofs_per_nodeT, TopoT, GeomT, NodeT, DataT, hyEdge_index_t >::iterator::operator++ ( )

inline

Increment iterator and return incremented iterator.

---

This function incements the iterator and returns the incremented iterator. Thus, no new iterator needs to be constructed and only a reference needs to be returned. This makes the function more performant compared to iterator operator++(int). It is executed using ++iterator and not iterator++.

Return values

incemented

The incremented iterator.

operator++() [2/2]

template<unsigned int n_dofs_per_nodeT, class TopoT , class GeomT , class NodeT , class DataT = EmptyC, typename hyEdge_index_t = unsigned int>

iterator HDGHyperGraph< n_dofs_per_nodeT, TopoT, GeomT, NodeT, DataT, hyEdge_index_t >::iterator::operator++ ( int  )

inline

Increment iterator and return old iterator.

---

This function incements the iterator and returns the old iterator. Thus, a new iterator needs to be constructed and only a reference needs to be returned. This makes the function less performant compared to iterator operator++(). It is executed using iterator++ and not ++iterator.

Return values

incemented

The incremented iterator.

Here is the call graph for this function:

operator--() [1/2]

template<unsigned int n_dofs_per_nodeT, class TopoT , class GeomT , class NodeT , class DataT = EmptyC, typename hyEdge_index_t = unsigned int>

iterator& HDGHyperGraph< n_dofs_per_nodeT, TopoT, GeomT, NodeT, DataT, hyEdge_index_t >::iterator::operator-- ( )

inline

Decrement iterator and return incremented iterator.

---

This function decements the iterator and returns the decremented iterator. Thus, no new iterator needs to be constructed and only a reference needs to be returned. This makes the function more performant compared to iterator operator--(int). It is executed using –iterator and not iterator–.

Return values

decemented

The decremented iterator.

operator--() [2/2]

template<unsigned int n_dofs_per_nodeT, class TopoT , class GeomT , class NodeT , class DataT = EmptyC, typename hyEdge_index_t = unsigned int>

iterator HDGHyperGraph< n_dofs_per_nodeT, TopoT, GeomT, NodeT, DataT, hyEdge_index_t >::iterator::operator-- ( int  )

inline

Decrement iterator and return old iterator.

---

This function decements the iterator and returns the old iterator. Thus, a new iterator needs to be constructed and only a reference needs to be returned. This makes the function less performant compared to iterator operator--(). It is executed using iterator– and not –iterator.

Return values

decemented

The decremented iterator.

Here is the call graph for this function:

operator=()

template<unsigned int n_dofs_per_nodeT, class TopoT , class GeomT , class NodeT , class DataT = EmptyC, typename hyEdge_index_t = unsigned int>

iterator& HDGHyperGraph< n_dofs_per_nodeT, TopoT, GeomT, NodeT, DataT, hyEdge_index_t >::iterator::operator= ( const iterator &  other )

default

Copy–assign an iterator from another iterator.

---

Asign a given HDGHyperGraph::iterator to be a copy of another one

Parameters

other

Other iterator which is copied.

operator==()

template<unsigned int n_dofs_per_nodeT, class TopoT , class GeomT , class NodeT , class DataT = EmptyC, typename hyEdge_index_t = unsigned int>

bool HDGHyperGraph< n_dofs_per_nodeT, TopoT, GeomT, NodeT, DataT, hyEdge_index_t >::iterator::operator== ( const iterator &  other )

inline

Check for equality with another iterator.

---

This function checks whether the current iterator is equal to anoother iterator. In this context equal means that they refer to the same HDGHyperGraph and have the same index.

Parameters

other

iterator which is checked to be equal.

Return values

is_equal

boolean which is true if both iterators are equal and false otherwise.

Member Data Documentation

hyGraph_

template<unsigned int n_dofs_per_nodeT, class TopoT , class GeomT , class NodeT , class DataT = EmptyC, typename hyEdge_index_t = unsigned int>

HDGHyperGraph& HDGHyperGraph< n_dofs_per_nodeT, TopoT, GeomT, NodeT, DataT, hyEdge_index_t >::iterator::hyGraph_

private

Reference to the HDGHyperGraph of the iterator.

---

The hyEdge is characterized via its respective HDGHypergraph (of which the reference is saved) and its index who need to be members of the iterator.

index_

template<unsigned int n_dofs_per_nodeT, class TopoT , class GeomT , class NodeT , class DataT = EmptyC, typename hyEdge_index_t = unsigned int>

hyEdge_index_t HDGHyperGraph< n_dofs_per_nodeT, TopoT, GeomT, NodeT, DataT, hyEdge_index_t >::iterator::index_

private

Index of the hyEdge of the iterator.

---

The hyEdge is characterized via its respective HDGHypergraph (of which the reference is saved) and its index who need to be members of the iterator.

---

The documentation for this class was generated from the following file:

• /home/runner/work/HyperHDG/HyperHDG/include/HyperHDG/hdg_hypergraph.hxx
